Switchboard for skittle alley control
item no.: 50100
Machine control board 2000
control for skittle and bowling alleys
item no.: 50124
Machine controller 2005
control for skittle and bowling alleys - with short-circuit-proof output stage for picture display and bowling interface
item no.: 50125
Motor control board 2000
BT-Motor-2000 machine and ball lifter control with OptoTriac, 3x relay output
item no.: 50128
Motor control board 2003
BT-Motor-2003 machine and ball lifter control with OptoTriac, 3x relay output with 6 pol. additional connection
item no.: 50129
Motor control board 2004
BT-Motor-2004 machine and ball lifter control with OptoTriac, 3x relay output with 8 pol. additional connection and input for thermal protection for ball lifter motor
item no.: 50130
Sensor connection board
external connection plate for all light barriers and band switches incl. 2m Sub-D25 - cable to switcVerwenden Sie Übersetzungssoftware-Plugins und erhalten Sie Zugriff auf unser API.hboard
item no.: 50135
Power supply 3A
adjustable power supply up to max. 3A
item no.: 50137
Control package for skittle alley
switchboard, bowl photoelectric sensor control panel and cable set
item no.: 50190
Keyboard connection cable with solder adapter
1m long, RJ45 plug to solder distributor for use with old capillaries
item no.: 50212
Keyboard connection cable
30m RJ45 cable
item no.: 50213
Keyboard computer for skittle alley keyboard
Z8 keyboard computer for skittle alley keyboard 2003
item no.: 50231
Keyboard computer for leisure keyboard
Z8 computer card for bowling or leisure keyboard
item no.: 50232
Input button board 03
skittle alley keyboard with single buttons and display for shot and player
item no.: 50233
Keyboard plate with foil
for skittle alley keyboard 03 with single buttons in german or czech
item no.: 50234
Display: red card
Mux-display red card, 8x8 cm for 12V display module
item no.: 50321
Display: yellow card
Mux-display yellow card, 8x8 cm for 12V display module
item no.: 50322
Display: Enable / disabled
Mux-display release, 8x8 cm for 12V-display board
item no.: 50323
Display: edge
Mux-display edge, 8x8 cm for 12V display module
item no.: 50326
Display: alley
Mux-display alley, 8x8 cm for 12V display module
item no.: 50327
Display: skittle
Mux-display skittle, 8x8 cm for 12V display module
item no.: 50328
Display: release
green / red display for 24V, 16x8cm
item no.: 50331

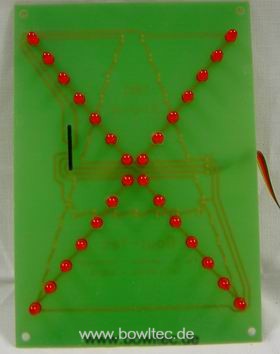

Display: strike / spare
for bowling, 24V, 12x17cm
item no.: 50333

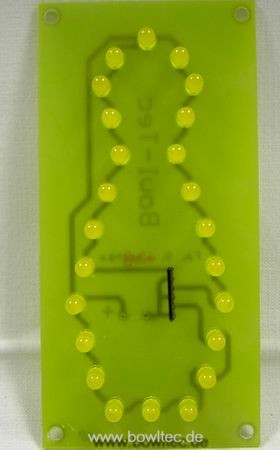

Display: skittle
for 24V, 12x6cm
item no.: 50334

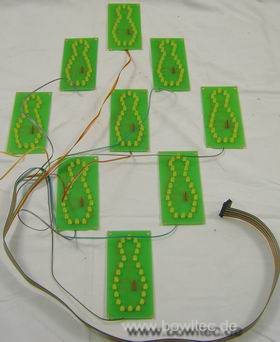

Display: skittle set 9
complete skittle pattern with 20-pin ribbon cable with mullion connector
item no.: 50335

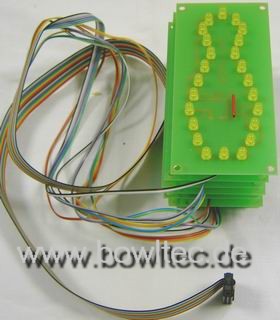

Display: skittle set 10
complete skittle set for 24V, with ribbon cable and plug connector
item no.: 50336
Display: full or clear
24V display, 12x17cm (order information "V" or "A" required)
item no.: 50337
Bowling display assembly
24V display for release/locked, 1st/2nd throw as well as spare and strike in MDF cabinet with individual colouring
item no.: 50338
Display: cypher
Mux indicator cypher, 12.8 x 14.2 cm for 12V display module
item no.: 50340
Lamp Driver 2005
short-circuit-proof amplifier module for image display or scoring interface connection - with adjustable power supply
item no.: 50344
Display distributor 97
Display distributor with par. Control, controllable: 24 digits with own memory and 24 outputs for picture display, horn,... for 24V display, no multiplex/i>
item no.: 50345
Lamp driver 2000
Lamp drivers for picture displays (without own power supply)
item no.: 50346
Display Controller AZ8
Z8 controller card with dual-port RAM
item no.: 50370

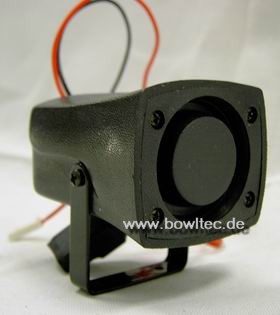

Horn
Transition, Strike, All nine, can be operated with built-in voltage regulator from 9 to 35V
item no.: 50390
Scrolling text LED24x8 - Display plate
LED matrix 24x8 pixels, 42, 7x14,2 cm equipped with red or green LED
item no.: 50413
Scrolling text driver board
serially controlled driver plate for 24x8 Mux. LED graphic display
item no.: 50414
Result Strip Printer
FD305, 59mm thermal printer, built-in device, very quiet printing, very low paper consumption, can also be used as double web printer, graphic printout with conical image possible - with power supply unit, mounting plate and cable set with switch-on relay
item no.: 50600
RS 485 converter
converter for path coupling to the PC, RS 232 to 485 converter with galvanic isolation,
own power supply with 9V power supply unit
item no.: 50726
Light barrier IFM, rectangular
reflection light barrier with mirror, 7m range, 5m connection cable (switches to +)
item no.: 50902
Light barrier IFM, rectangular
reflection light barrier with mirror, 7m range, 25m connection cable (switches to +)
item no.: 50905
Light barrier delay board
extends the light barrier signal for ball passage to 1 second, output stage with relay change-over contact, input delay can be switched on for overpassing
item no.: 50907
